ECOFIT 2RECA3 SMOKE EXTRACTOR FAN 230V WITH TACHOMETER FOR PELLET STOVE
| Price: | €153,73 VAT included (22%) |
|---|---|
| Freight costs: | From € 9,39 VAT included (22%)Details |
| Item code: | 1054210 |
| Supplier code: | 2RECA3 |
| Condition: | New |
| Marca: | ECOFIT |
| Availability: | Available Shipping in 24/48 hours |
| Weight: | 0,600 Kg |
| Quantity: |
Services
PrintUsers feedback
Description

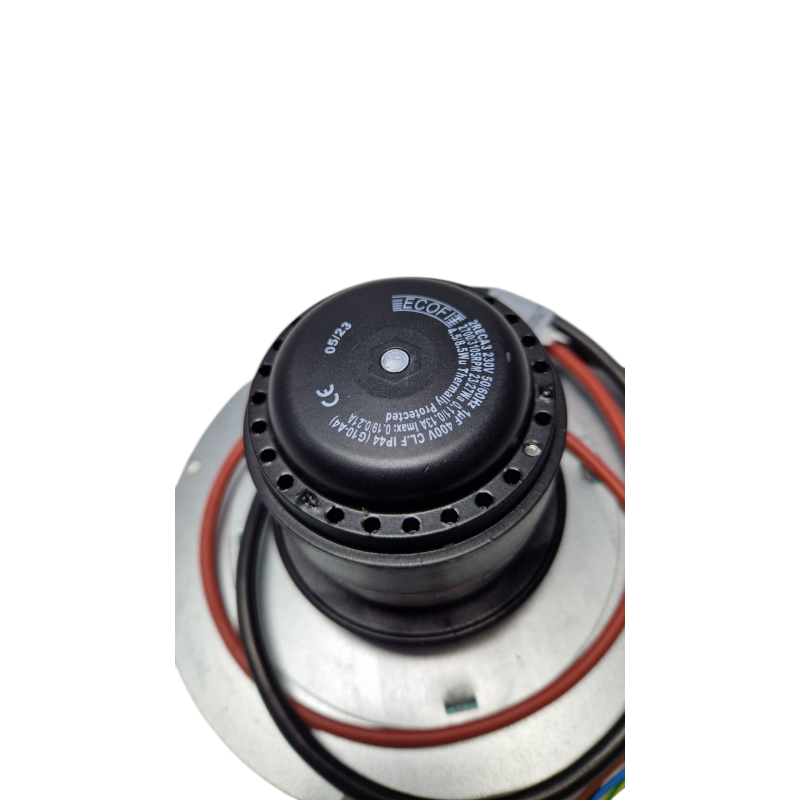

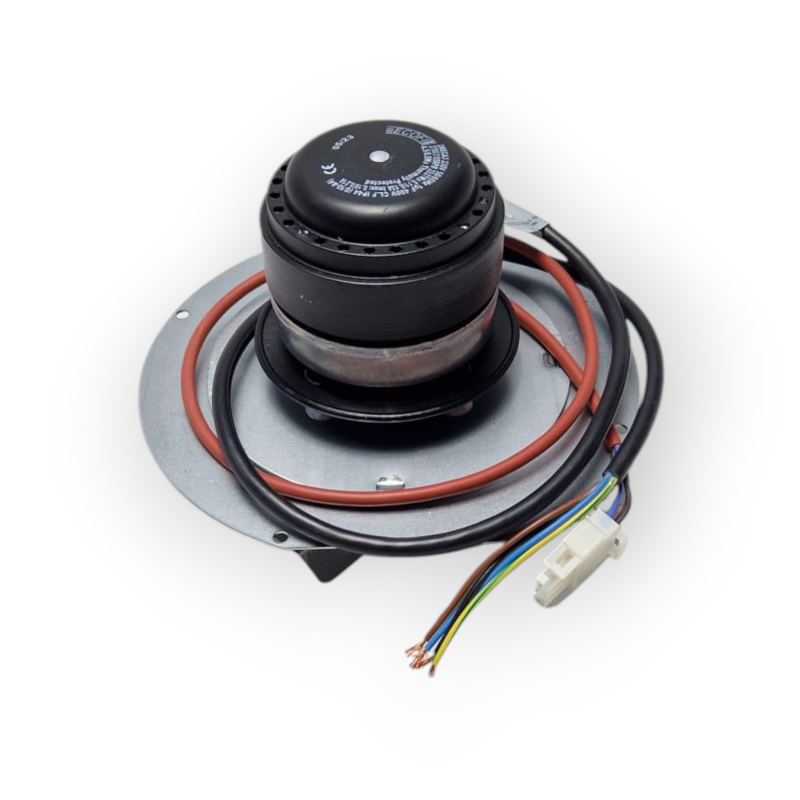

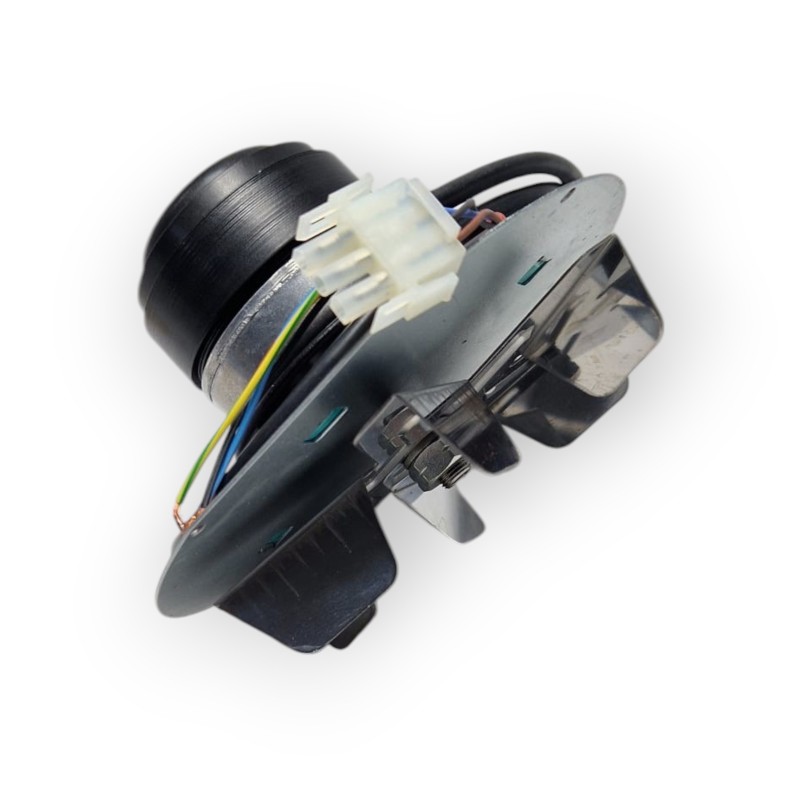

ECOFIT 2RECA3 SMOKE EXTRACTOR FAN 230V WITH REPLACEMENT TACHOMETER FOR PELLET STOVE
POWER SUPPLY 230V AC 50/60Hz 23/27W
IMPELLER DIAMETER 150 mm
BLADE HEIGHT 25 mm
CL F MOTOR
RPM 2700/3105 RPM
FLOW RATE 155m3/h
COMPLETE WITH CONNECTOR WITH ENCODER
ENCODER CONNECTIONS:
BROWN: +5V
BLACK: GND or GROUND
BLUE: ENC (encoder signal)
COUNTERCLOCKWISE ROTATION VIEWED FROM THE MOTOR SIDE
CAPACITIZER INCLUDED
POWER SUPPLY 230V AC 50/60Hz 23/27W
IMPELLER DIAMETER 150 mm
BLADE HEIGHT 25 mm
CL F MOTOR
RPM 2700/3105 RPM
FLOW RATE 155m3/h
COMPLETE WITH CONNECTOR WITH ENCODER
ENCODER CONNECTIONS:
BROWN: +5V
BLACK: GND or GROUND
BLUE: ENC (encoder signal)
COUNTERCLOCKWISE ROTATION VIEWED FROM THE MOTOR SIDE
CAPACITIZER INCLUDED
