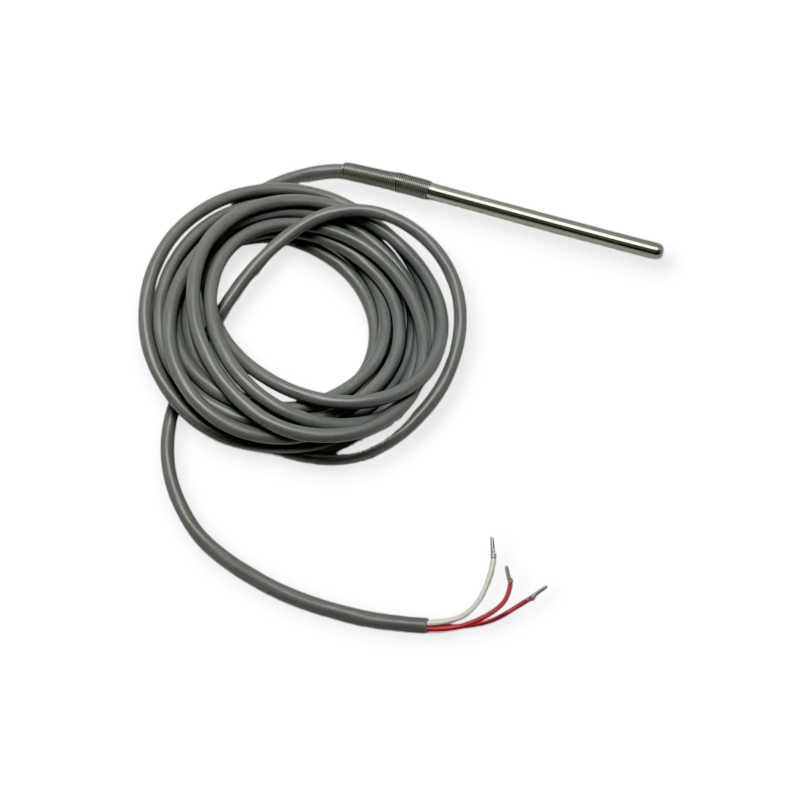

PIXSYS PTS-1B-6X100-A05 PT100 TEMPERATURE SENSOR 3 WIRE Ø6X100 MM SILICONE CABLE 3 M

Pixsys PTS-1B-6X100-A05 PT100 temperature sensor with Class B sensing element designed for temperature measurement and control in industrial processes, HVAC systems, refrigeration equipment and automation applications.

The probe features an AISI 304 stainless steel sheath with 6 mm diameter and 100 mm immersion length, providing mechanical robustness and fast thermal response.

The 3-wire configuration improves measurement accuracy by compensating cable resistance. The 3 meter silicone cable ensures high flexibility and resistance to high temperatures, making the sensor suitable for various industrial environments.

TECHNICAL DATA

brand Pixsys
model PTS-1B-6X100-A05
sensor type PT100 Class B
probe diameter 6 mm
immersion length 100 mm
sheath material stainless steel AISI 304
cable type silicone
cable length 3 meters
connection 3 wires
operating temperature range -100°C +250°C
response time approx. 6.5 seconds
sensor insulation MgO magnesium oxide >20 MO at 25°C (500 VDC)

APPLICATIONS

temperature probe used for monitoring and control in HVAC systems, industrial refrigeration, automation systems and temperature regulation equipment.
