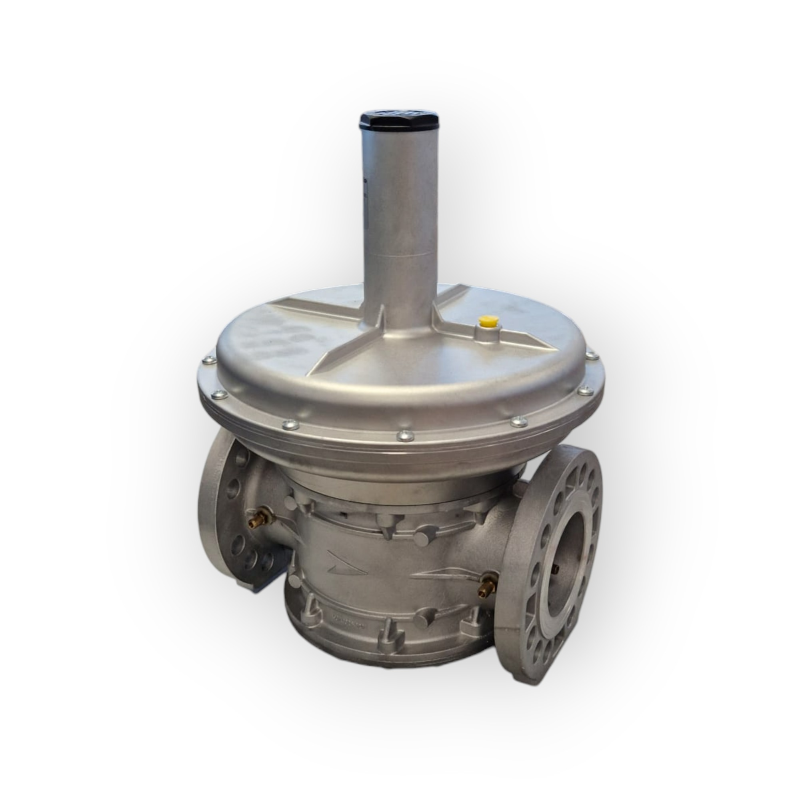

PRESSURE REGULATOR FS1B DN65 PN6 P2 10-30 MBAR FLANGED FOR GAS BURNERS
| Price: | €930,31 VAT included (22%) |
|---|---|
| Freight costs: | From € 20,74 VAT included (22%)Details |
| Item code: | 1056465 |
| Supplier code: | 009.0256.201 |
| Condition: | New |
| Marca: | GIULIANI ANELLO |
| Availability: | Available Shipping in 24/48 hours |
| Weight: | 15,000 Kg |
| Quantity: |
Services
PrintUsers feedback
Description
GIULIANI ANELLO PRESSURE REGULATOR REDUCER FS1B DN65 PN6 P2 10-30 MBAR FLANGED FOR GAS BURNERS
Main features
The gas pressure regulators comply with
UNI EN88-2 standards (EEC gas directive 90/396).
The regulators are suitable for installation on
systems with automatic gas burners
including mixed and combined ones and on systems of
industrial distribution.
TECHNICAL DATA
Inlet pressure range P1:
- P2 + 30 mbar up to 1 bar.
P2 working range:
- up to 350 mbar for threaded models
- up to 450 mbar for flanged models
The regulator is supplied as standard with the neutral spring;
calibration ranges according to the spring table.
- Regulation group: AC10
- Closing pressure group: SG3O
Fuels: gases of the three families: manufactured gases
(city gas); natural gases (group H - methane); petroleum gas
liquefied (LPG); non-aggressive gases.
Operating temperature: -10C +60C.
Mechanical resistance:
according to UNI-EN88 and UNI-EN161 standards.
Operation:
with spring load, without auxiliary energy.
Construction features: compensation of
inlet pressure, safety diaphragm as standard, connection
internal impulse. Sealing gasket for zero closure.
Inlet and outlet pressure taps on all models.
Materials: aluminum body; internal parts in aluminium,
steel, brass and synthetic materials; membranes and gaskets
made of NBR rubber-based material.
