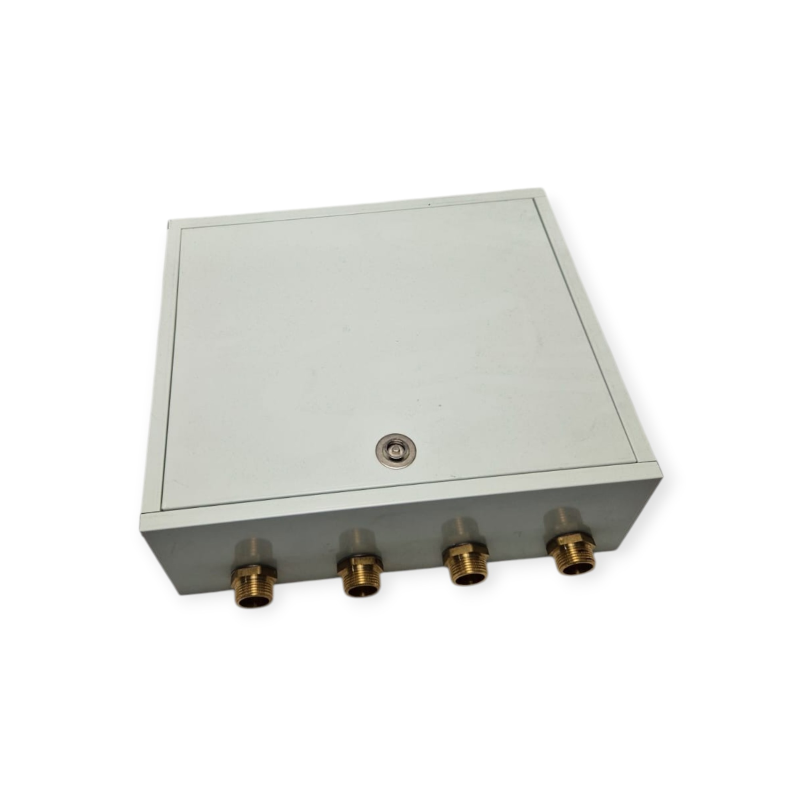

BOOSTER PUMP UNIT WITH OVERSIZED 40 PLATE HEAT EXCHANGER 8 M CIRCULATOR SYSTEM SEPARATOR 1" CONNECTIONS FOR HEATING SYSTEMS

BOOSTER UNIT WITH OVERSIZED 40 PLATE BRAZED PLATE HEAT EXCHANGER FOR HEATING SYSTEMS. The module provides hydraulic separation between primary and secondary circuits and ensures circulation of the heat transfer fluid through a high efficiency electronic circulator pump.

The oversized plate heat exchanger offers a larger heat exchange surface compared to compact models, improving heat transfer efficiency, increasing circuit flow and reducing pressure losses in the system.

MAIN FEATURES

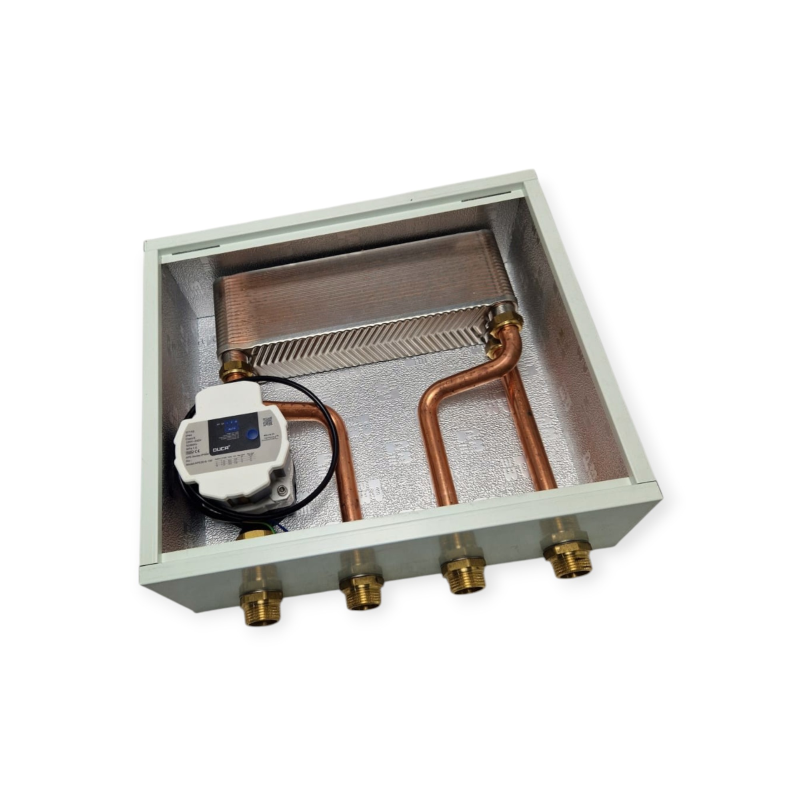

complete hydraulic module with electronic circulator pump
oversized brazed plate heat exchanger
hydraulic separation between primary and secondary circuits
compact insulated metal enclosure
copper pipes and manifolds

TECHNICAL DATA

plate heat exchanger: 40 plates
heat exchanger length: 278 mm
modulating electronic circulator
maximum pump head: 8 m
power supply: 220-240 V
frequency: 50/60 Hz
protection rating: IP44
hydraulic connections: 1"
module dimensions: 35 x 40 x 14 cm

APPLICATION

unit used in heating systems to provide hydraulic separation between two circuits and ensure efficient heat transfer through the plate heat exchanger. Suitable for residential and technical heating systems where circulation and balanced flow distribution are required.
