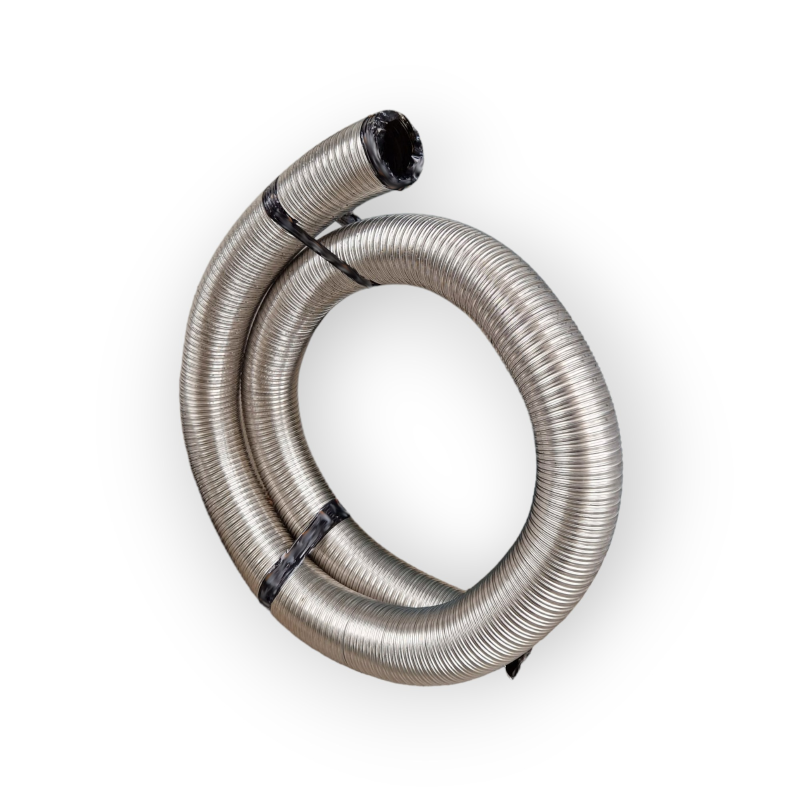

TDX FLEXIBLE FLUE PIPE Ø 140 MM AISI 316L STAINLESS STEEL DOUBLE WALL 2 METER COIL FOR FLUE GAS EVACUATION

TDX flexible flue pipe with 140 mm diameter made of AISI 316L stainless steel with double-wall construction and smooth inner surface, certified according to EN 1856-2 for the evacuation of combustion products.

MAIN FEATURES
Double-wall flexible metal flue pipe
Smooth inner wall made of AISI 316L stainless steel (1.4404)
Combined thickness 0.10 + 0.10 mm
Excellent corrosion resistance V2 against acidic condensates
Nominal diameter 140 mm
2 meter coil format
Minimum bending radius 350 mm

TECHNICAL DATA
Reference standard EN 1856-2
Pressure class P1 for positive pressure operation
Pressure class N1 for negative pressure operation
Maximum operating temperature
• up to 200 °C in positive pressure P1
• up to 600 °C in negative pressure N1
Product designation
T200 P1 W V2 L50010 O
T600 N1 W V2 L50010 G

APPLICATIONS
Suitable for flue gas evacuation from domestic and industrial heat generators
Usable with gaseous and liquid fuels in dry or wet operation
Usable with solid fuels in dry operation
Suitable for condensing heat generators
Ideal for relining and renovation of existing flue ducts with irregular layout

INSTALLATION
Installation with flue gas direction indicated on the outer surface
Connection to rigid elements using dedicated terminals and accessories
For positive pressure P1 operation, the use of high-temperature silicone sealant is required
