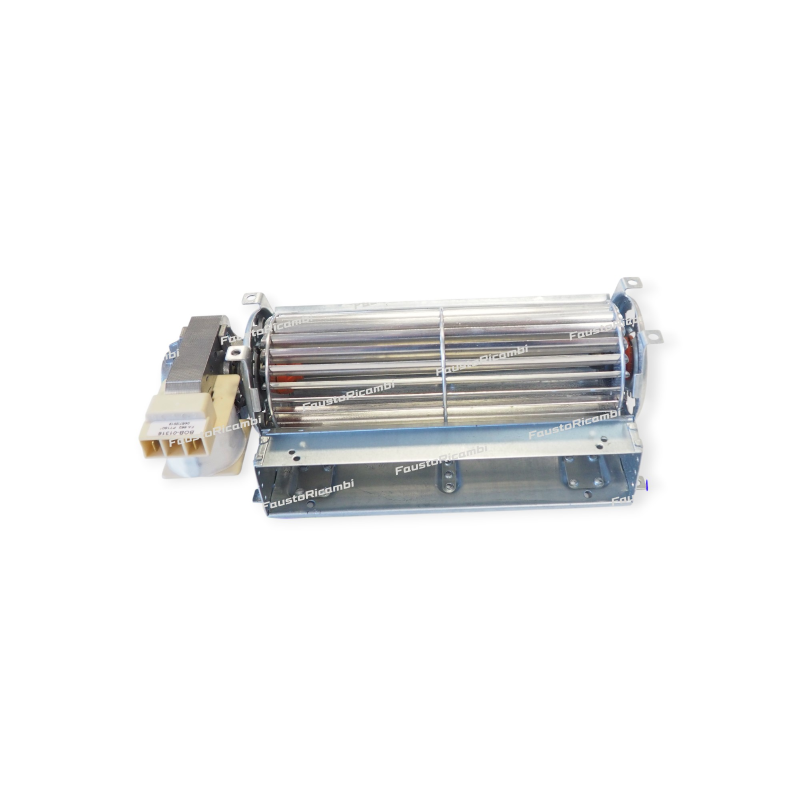

TRIAL THS18B6-045 left tangential fan powered at 230V with 31W power consumption, designed for pellet stove applications. Unit equipped with a high-efficiency tangential impeller, ideal for uniform distribution of warm air and reliable performance.
MAIN FEATURES
original TRIAL spare part
model THS18B6-045
left tangential fan SX
rated voltage 230 V
frequency 50/60 Hz
power consumption 31 W
rated speed 1600 rpm
air flow 150 m/h
static pressure 60 Pa

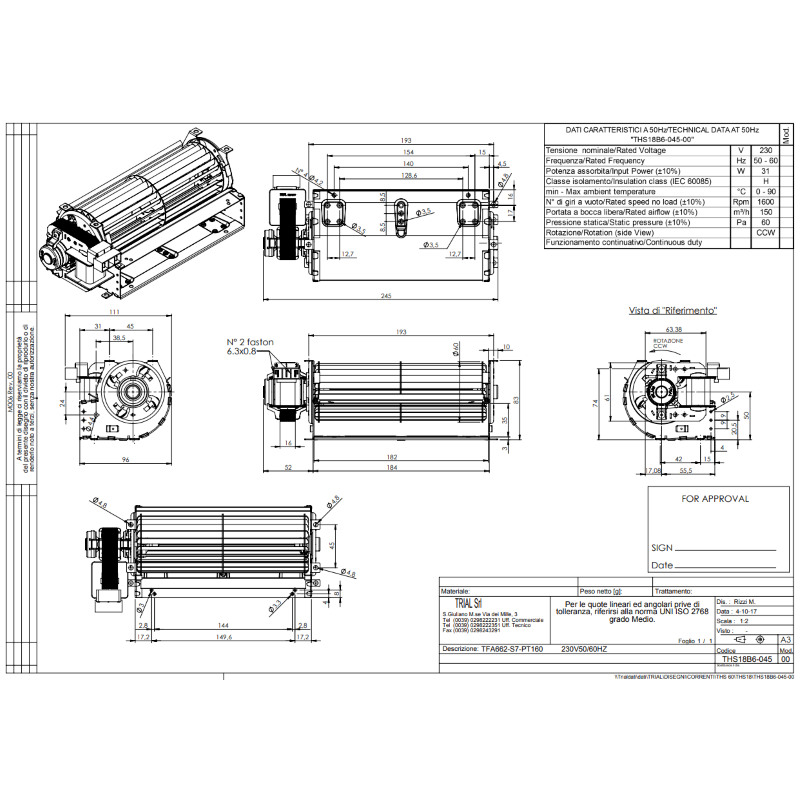

air outlet dimensions 184 x 35 mm
insulation class H
ambient temperature 0 / 90 C
counterclockwise rotation CCW
continuous duty
faston connection 6.3x0.8
APPLICATION
tangential fan for pellet stoves, used for air circulation and warm air distribution, ideal as a replacement part to restore proper airflow and system efficiency.
