Euromotors 91M-3540/4 Fan Motor 230V 40W Single-Shaft 3073000 Compatible K35411M02125

Original Euromotors 91M-3540/4 Electric Motor
Designed for pellet stoves and ventilation systems, this single-shaft motor is reliable and quiet, ideal as a replacement for tangential or centrifugal fans.

Thanks to its robust construction and ball bearings, it ensures long life and continuous operation even under heavy-duty conditions.

Compatible with several models, including Sisme code K35411M02125.

Technical specifications
Brand: Euromotors
Model: 91M-3540/4
Product code: 3073000
Type: Single-shaft electric motor
Voltage: 230V – 50Hz
Power: 40 W
Current: 0.40 A
Speed: 2400 rpm
Frequency: 50 Hz
Insulation class: F
Thermal protection: 130°C
Duty: Continuous (S1)
Capacitor: 2.5 µF
Rotation: Counterclockwise from shaft side
Bearing type: Ball bearings (series 90)

Mechanical data
Shaft type: Single (mono-shaft)
Shaft diameter: Ø 10 mm
Shaft length: approx. 32.5 mm
Mounting: 3-point anti-vibration bracket
Fixing distance: Ø 172 mm (approx.)
End thread: M5
Electrical connection: Faston
Power cable included

Compatibility
Compatible with Sisme K35411M02125 motors
Can be used on several pellet stove models (check dimensions and mounts)

Applications
Pellet stoves
Tangential fans
Hot air ventilation systems

Benefits
High reliability and durability
Quiet operation
Easy installation
Professional high-quality replacementEURO MOTORS ITALIA

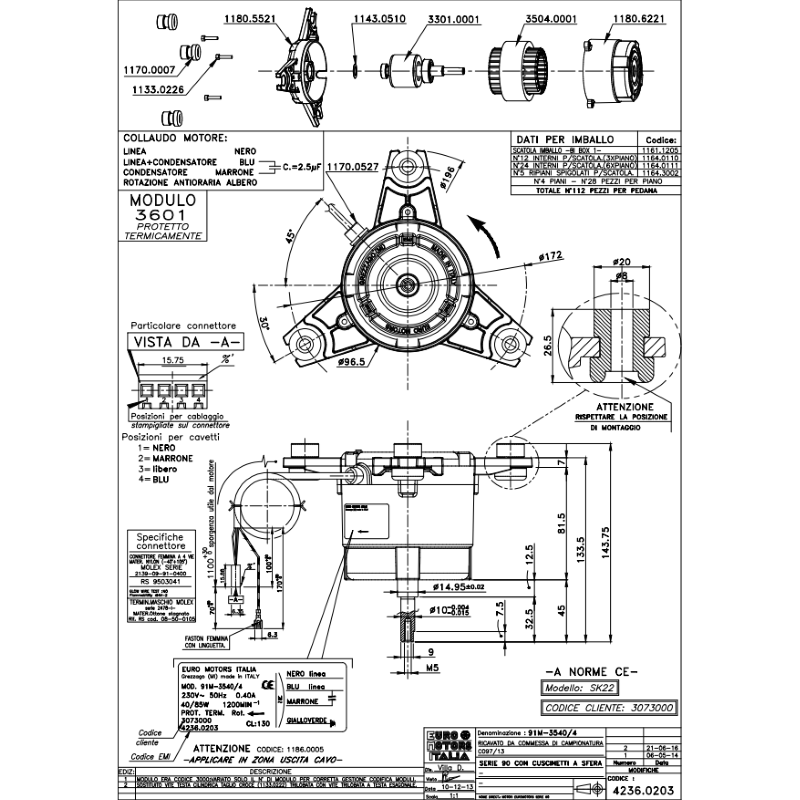

SINGLE SHAFT MOTOR MO91M-3540/4 3073000
COMPATIBLE SISME K35411MO2125
230V 50 Hz
40/85 WATT 1200 min
