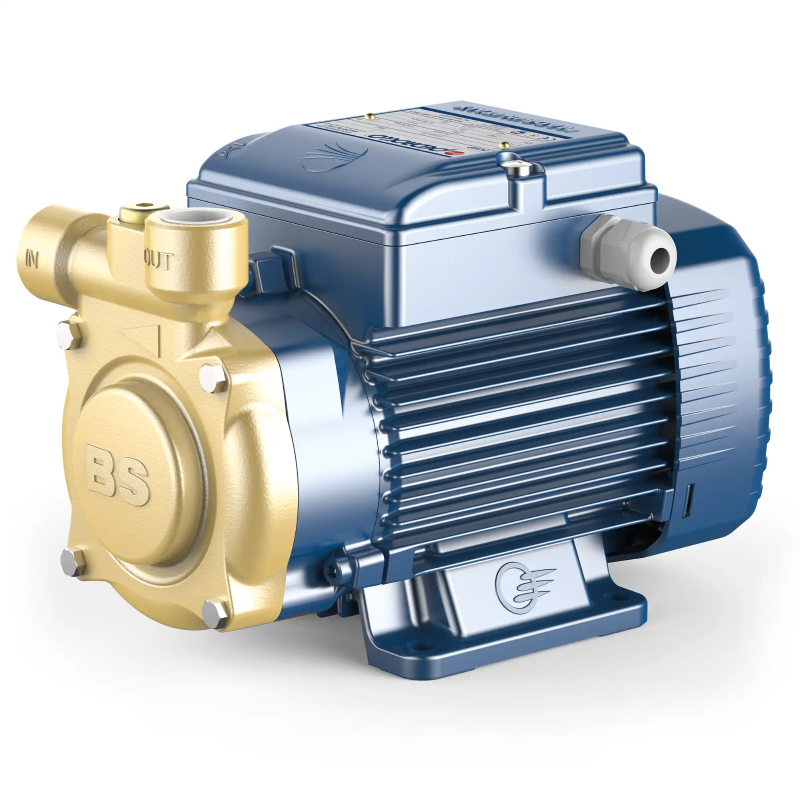

PEDROLLO PQm 81-Bs 41PQ88YA1 PERIPHERAL ELECTRIC PUMP 0.55KW 0.75HP 230V WATER PUMP BRASS

PEDROLLO PQm 81-Bs 41PQ88YA1 PERIPHERAL WATER PUMP SINGLE-PHASE 230V 0.75HP IN BRASS HIGH HEAD FOR INDUSTRIAL SYSTEMS AND COOLING.

GENERAL DESCRIPTION
ELECTRIC PUMP WITH PERIPHERAL IMPELLER DESIGNED FOR PUMPING CLEAN WATER FREE FROM ABRASIVE PARTICLES AND CHEMICALLY NON-AGGRESSIVE LIQUIDS.
THE PQ-Bs VERSION FEATURES A BRASS PUMP BODY THAT ENSURES HIGH RESISTANCE TO CORROSION AND OXIDATION.
THANKS TO ITS HIGH PERFORMANCE, IT IS ALSO SUITABLE FOR INDUSTRIAL APPLICATIONS SUCH AS CHILLERS, COOLING SYSTEMS AND BOILER FEEDING.

TECHNICAL FEATURES

PERIPHERAL ELECTRIC PUMP
SINGLE-PHASE ELECTRIC MOTOR 230V 50HZ WITH BUILT-IN THERMAL PROTECTION
IPX4 PROTECTION
CLASS F INSULATION
CONTINUOUS DUTY S1
HIGH EFFICIENCY MOTOR IE2
ANTI-BLOCKING SYSTEM WITH FRONTAL THRUST RING

TECHNICAL DATA

BRAND PEDROLLO
MODEL PQm 81-Bs
CODE 41PQ88YA1

POWER 0.55 KW / 0.75 HP

FLOW RATE 1 - 46 L/MIN
HEAD 96 - 5 m

MAX SUCTION LIFT 8 m
LIQUID TEMPERATURE -10°C / +90°C
AMBIENT TEMPERATURE -10°C / +40°C
MAX PRESSURE 10 BAR

CONNECTIONS 1/2" - 1/2"

CURRENT 3.5 A

WEIGHT 6.9 KG

MATERIALS

PUMP BODY IN BRASS CW617N
IMPELLER IN BRASS
SHAFT IN STAINLESS STEEL AISI 431
MECHANICAL SEAL SILICON CARBIDE / GRAPHITE / NBR
ALUMINIUM BRACKET WITH BRASS COVER

APPLICATIONS

PUMPING CLEAN WATER
INDUSTRIAL USE
COOLING SYSTEMS
CHILLERS
BOILER FEEDING

NOTES

ALWAYS CHECK COMPATIBILITY BASED ON THE MODEL AND THE SYSTEM CHARACTERISTICS.
