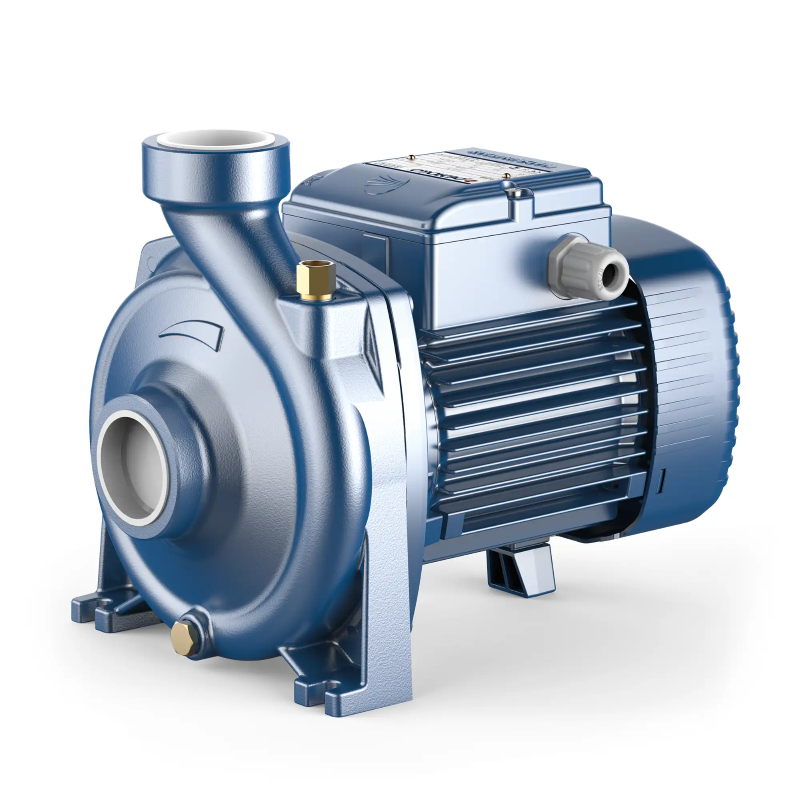

PEDROLLO HFm 5A 47HF5M0AA1EU CENTRIFUGAL ELECTRIC PUMP 0.90kW 1.25HP 230V HIGH FLOW CLEAN WATER

CENTRIFUGAL ELECTRIC PUMP FOR CLEAN WATER WITH HIGH FLOW RATE

GENERAL DESCRIPTION

CENTRIFUGAL ELECTRIC PUMP DESIGNED FOR PUMPING CLEAN WATER AND CHEMICALLY NON-AGGRESSIVE LIQUIDS.
IDEAL FOR APPLICATIONS REQUIRING HIGH FLOW RATES WITH MEDIUM-LOW HEAD.
PARTICULARLY SUITABLE FOR CIVIL, AGRICULTURAL AND INDUSTRIAL USES SUCH AS IRRIGATION, WATER TRANSFER AND WATER SUPPLY.

TECHNICAL FEATURES

CENTRIFUGAL ELECTRIC PUMP
SINGLE-PHASE ELECTRIC MOTOR 230V 50Hz WITH BUILT-IN THERMAL OVERLOAD PROTECTION
IPX4 PROTECTION
CLASS F INSULATION
CONTINUOUS DUTY S1

TECHNICAL DATA

BRAND PEDROLLO
MODEL HFm 5A
CODE 47HF5M0AA1EU

POWER 0.90 kW / 1.25 HP

FLOW RATE UP TO 700 l/min (42 m³/h)
HEAD UP TO 39 m

MAX SUCTION LIFT 7 m
LIQUID TEMPERATURE -10°C / +90°C
AMBIENT TEMPERATURE UP TO +40°C

MAX PRESSURE 6 bar

CONNECTIONS 2" - 2"
CURRENT ABSORPTION 6.0 A
WEIGHT 15.1 kg

MATERIALS

PUMP BODY IN CAST IRON
COVER IN AISI 304 STAINLESS STEEL
IMPELLER IN AISI 304 STAINLESS STEEL
SHAFT IN AISI 431 STAINLESS STEEL
MECHANICAL SEAL CERAMIC / GRAPHITE / NBR

APPLICATIONS

CLEAN WATER PUMPING
IRRIGATION
WATER TRANSFER FROM TANKS, RIVERS AND LAKES
CIVIL USE
AGRICULTURAL USE
INDUSTRIAL USE

NOTES

SUITABLE ONLY FOR CLEAN WATER
ALWAYS CHECK COMPATIBILITY WITH THE SYSTEM
