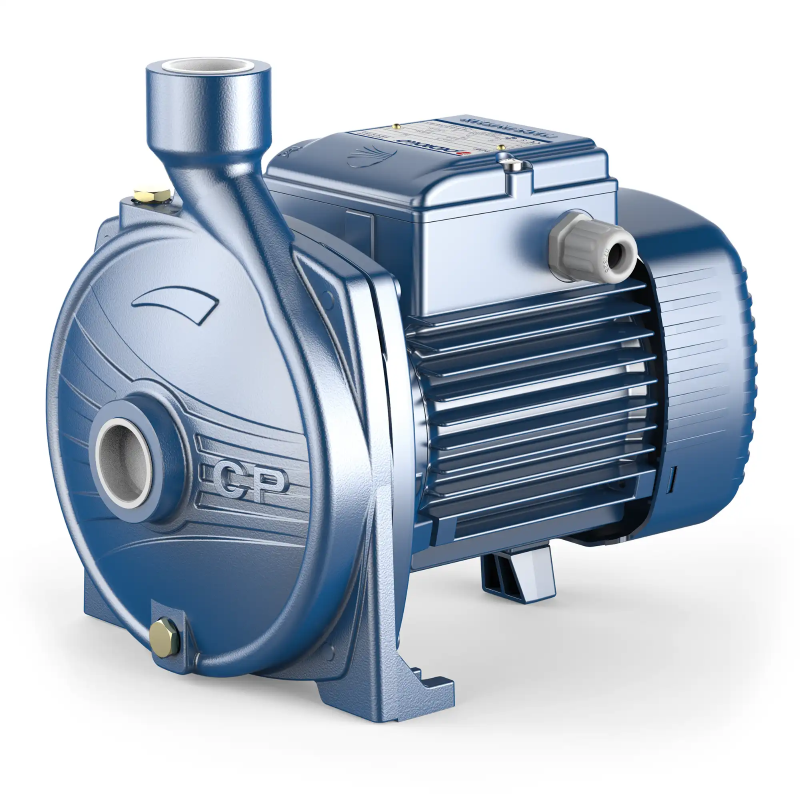

PEDROLLO CPm 160B 44CM26BA1 SINGLE-PHASE CENTRIFUGAL ELECTRIC PUMP 1.5kW 2HP 230V PRESSURE TANK SYSTEM

SINGLE-IMPELLER CENTRIFUGAL ELECTRIC PUMP FOR CLEAN WATER AND NON-AGGRESSIVE LIQUIDS.

GENERAL DESCRIPTION

SINGLE-IMPELLER CENTRIFUGAL ELECTRIC PUMP DESIGNED FOR PUMPING CLEAN WATER AND CHEMICALLY NON-AGGRESSIVE LIQUIDS.
THANKS TO ITS RELIABILITY AND EASE OF USE, IT IS WIDELY USED IN THE CIVIL, AGRICULTURAL AND INDUSTRIAL SECTOR, FOR WATER SUPPLY, COOLING SYSTEMS, AIR CONDITIONING SYSTEMS AND IRRIGATION.

TECHNICAL FEATURES

CENTRIFUGAL ELECTRIC PUMP
SINGLE-PHASE ELECTRIC MOTOR 230V 50Hz
IPX4 PROTECTION
CLASS F INSULATION
CONTINUOUS DUTY S1

TECHNICAL DATA

BRAND PEDROLLO
MODEL CPm 160B
CODE 44CM26BA1

POWER 1.5 kW / 2 HP

FLOW RATE 50 – 240 l/min
HEAD 37 – 23 m

MAX SUCTION LIFT 7 m
LIQUID TEMPERATURE -10°C / +90°C
AMBIENT TEMPERATURE UP TO +40°C
MAX PRESSURE 10 bar

CONNECTIONS 1½" – 1"
CURRENT 10.3 A
WEIGHT 20 kg

MATERIALS

PUMP BODY IN CAST IRON
COVER IN CAST IRON
IMPELLER IN STAINLESS STEEL
SHAFT IN STAINLESS STEEL AISI 431
MECHANICAL SEAL GRAPHITE / CERAMIC / NBR

APPLICATIONS

CLEAN WATER PUMPING
WATER DISTRIBUTION
CIVIL USE
AGRICULTURAL USE
INDUSTRIAL USE
IRRIGATION

NOTES

ALWAYS CHECK COMPATIBILITY BASED ON THE MODEL AND THE CHARACTERISTICS OF THE SYSTEM.
