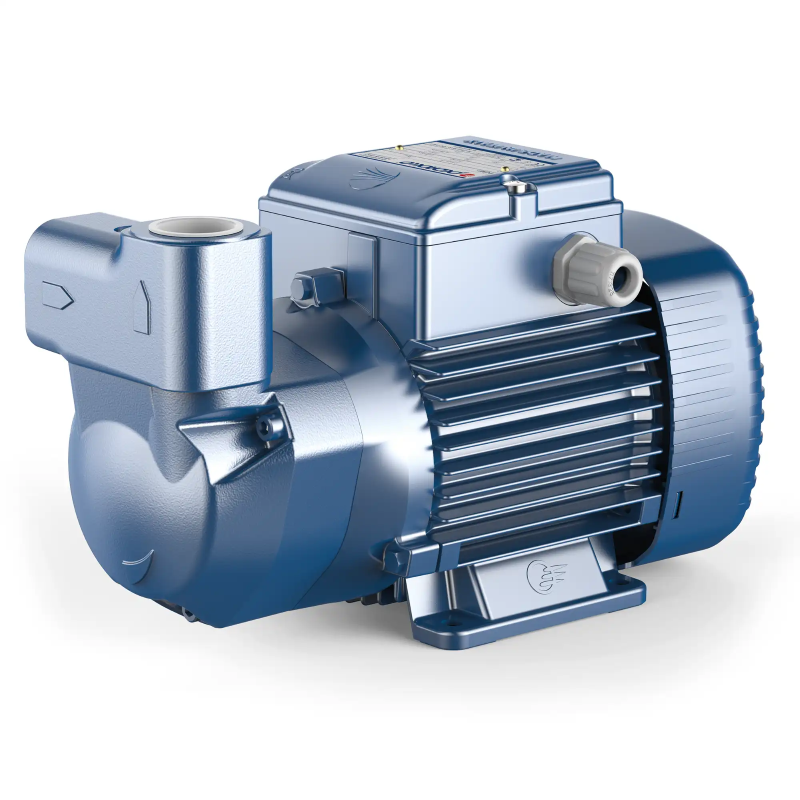

PEDROLLO CKRM 90 46CKR90A1 SELF-PRIMING ELECTRIC PUMP 0.75KW 1HP 230V FOR WATER

SELF-PRIMING LIQUID RING ELECTRIC PUMP DESIGNED FOR PUMPING CLEAN WATER FREE OF ABRASIVE PARTICLES AND CHEMICALLY NON-AGGRESSIVE LIQUIDS.
THANKS TO ITS OPERATING PRINCIPLE IT ENSURES RELIABLE OPERATION EVEN IN THE PRESENCE OF AIR OR IRREGULAR FLOW.
PARTICULARLY SUITABLE WHEN A COMPACT SELF-PRIMING PUMP IS REQUIRED.

TECHNICAL FEATURES

SELF-PRIMING ELECTRIC PUMP
SINGLE-PHASE ELECTRIC MOTOR WITH BUILT-IN THERMAL PROTECTION
POWER SUPPLY 230V 50HZ
PROTECTION IPX4
INSULATION CLASS F
CONTINUOUS DUTY S1
HIGH-EFFICIENCY MOTOR CLASS IE2
ANTI-BLOCK SYSTEM WITH DOUBLE FRONT SHIM

TECHNICAL DATA

BRAND PEDROLLO
MODEL CKRM 90
CODE 46CKR90A1

POWER 0.75 KW / 1 HP
FLOW RATE 5 - 50 L/MIN
HEAD 55 - 7 m

MAX SUCTION HEIGHT 9 m
LIQUID TEMPERATURE -10°C / +90°C
AMBIENT TEMPERATURE UP TO +40°C
MAX PRESSURE 6 BAR
CONNECTIONS 1" - 1"
WEIGHT 12 KG

MATERIALS

PUMP BODY IN CAST IRON WITH ANTI-BLOCKING STAINLESS STEEL SURFACE
IMPELLER IN BRONZE
SHAFT IN STAINLESS STEEL AISI 431
MECHANICAL SEAL CERAMIC / GRAPHITE / VITON
ALUMINIUM BRACKET WITH BRASS COVER

APPLICATIONS

DOMESTIC USE
AGRICULTURAL USE
INDUSTRIAL USE
PUMPING CLEAN WATER
USE IN THE PRESENCE OF AIR IN THE LIQUID

NOTES

ALWAYS CHECK COMPATIBILITY BASED ON THE MODEL AND THE CHARACTERISTICS OF THE SYSTEM.
