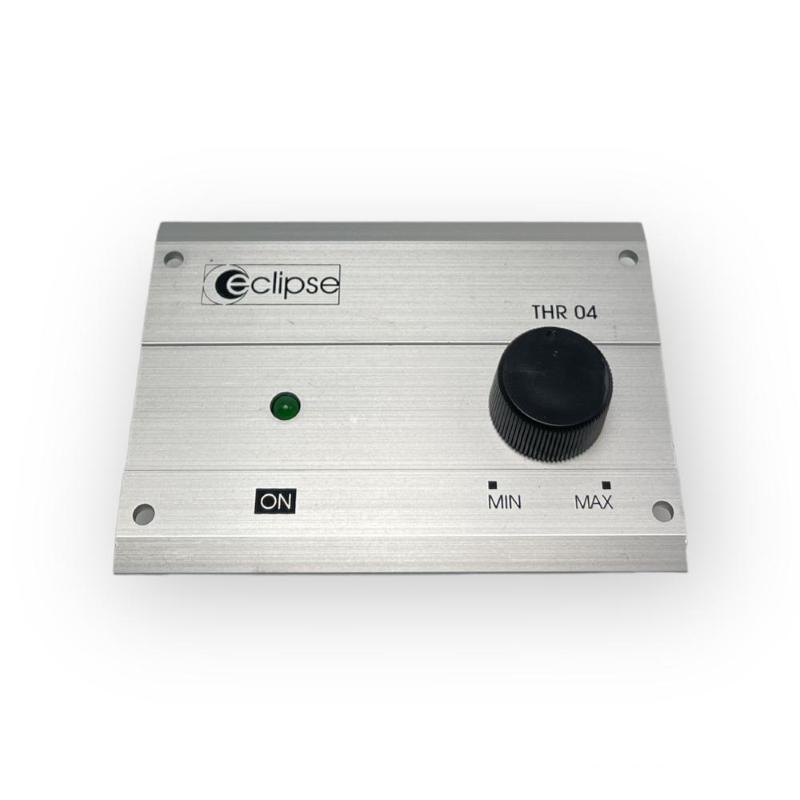

ECLIPSE ELECTRONIC BOARD SPEED ADJUSTMENT FAN THR 04 CONDITIONER
| Price: | €42,70 VAT included (22%) |
|---|---|
| Freight costs: | From € 7,52 VAT included (22%)Details |
| Item code: | 1028416 |
| Supplier code: | THR-04 |
| Condizione: | New |
Why choose Fausto Ricambi?
Do you need more details? |
|
| Availability: | Available Shipping in 24 hours |
| Weight: | 0,150 Kg |
| Quantity: |
Services
PrintUsers feedback
Description

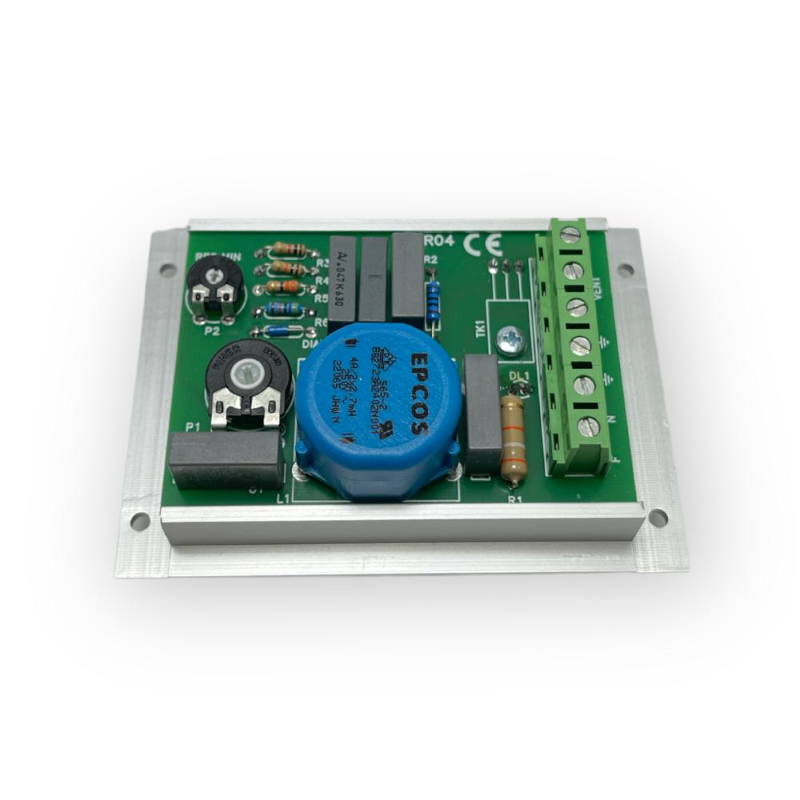

Specially designed for use on the machine, the THR 04 regulator is structured to support heavy duty applications such as continuous operation at maximum power (see technical data); this allows its use in any sector. While being able to control various types of load, it has been expressly designed for use in combination with fans. In addition, the presence of the minimum speed adjustment trimmer allows adaptability to any motor with absorption within the allowed limits. electromagnetic compatibility and low voltage. For installation and connections, follow the instructions given in the assembly instructions.VOLTAGE AND FREQUENCY: 230V - 50/60 HZ
CURRENT MIN. AND MAX .: 0.1 - 4.0 A
INPUT CURRENT: 8 A - 1 SEC.
PEAK CURRENT: 16 A - 1 MS.
DIMENTIONS WxHxD: 100x72x30 mm
WEIGHT: Kg 0.15
