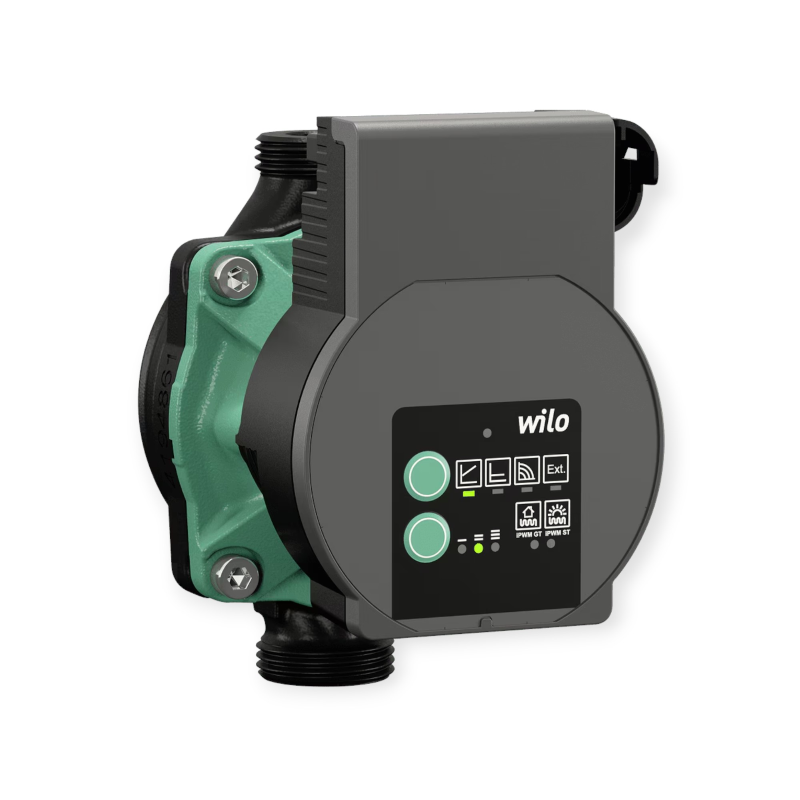

High-efficiency Wilo Varios PICO-STG 25/1-8 single-phase 230 V electronically controlled circulation pump, designed for heating and air conditioning applications as well as for geothermal and solar energy systems. Maintenance-free wet-rotor circulation pump equipped with a self-protected synchronous motor based on ECM technology and integrated electronic power control for modulating differential pressure regulation.
The pump features a cataphoresis-coated grey cast iron pump housing, PP-GF40 impeller, stainless steel shaft and metal-impregnated carbon bearings, ensuring reliability and long service life even under demanding operating conditions and at high temperatures. It is supplied with an electrical connection cable with three-pole plug and Wilo-Connector, PG11 cable gland and IPX4D protection rating.
Several preselectable control modes are available for optimal adaptation to system load: constant differential pressure with three predefined characteristic curves, variable differential pressure with three predefined characteristic curves, and constant speed with three speed levels. External control via PWM GT signal for heating and geothermal systems or PWM ST for solar systems is also provided.
According to official Wilo hydraulic data, the pump provides a maximum head of 8.4 m and a maximum flow rate of 4.5 m/h, with values depending on the selected curve and system operating point.
MAIN TECHNICAL DATA
single-phase power supply 1~230 V 10% 50/60 Hz
energy efficiency index EEI = 0.23
rated power P2 55 W
minimum power input P1 min 1 W
maximum power input P1 max 75 W
minimum speed 2695 rpm
maximum speed 4686 rpm
maximum operating pressure PN 10 bar
maximum head 8.4 m
maximum flow rate 4.5 m/h
minimum fluid temperature -20 C
maximum fluid temperature 110 C
minimum ambient temperature -10 C
maximum ambient temperature 40 C
insulation class F
protection rating IPX4D
MATERIALS
grey cast iron pump housing
PP-GF40 impeller
stainless steel shaft
metal-impregnated carbon bearings
INSTALLATION DATA
suction side connection G 1
discharge side connection G 1
installation length 180 mm
APPLICATIONS
heating systems
air conditioning systems
geothermal systems
solar thermal systems
