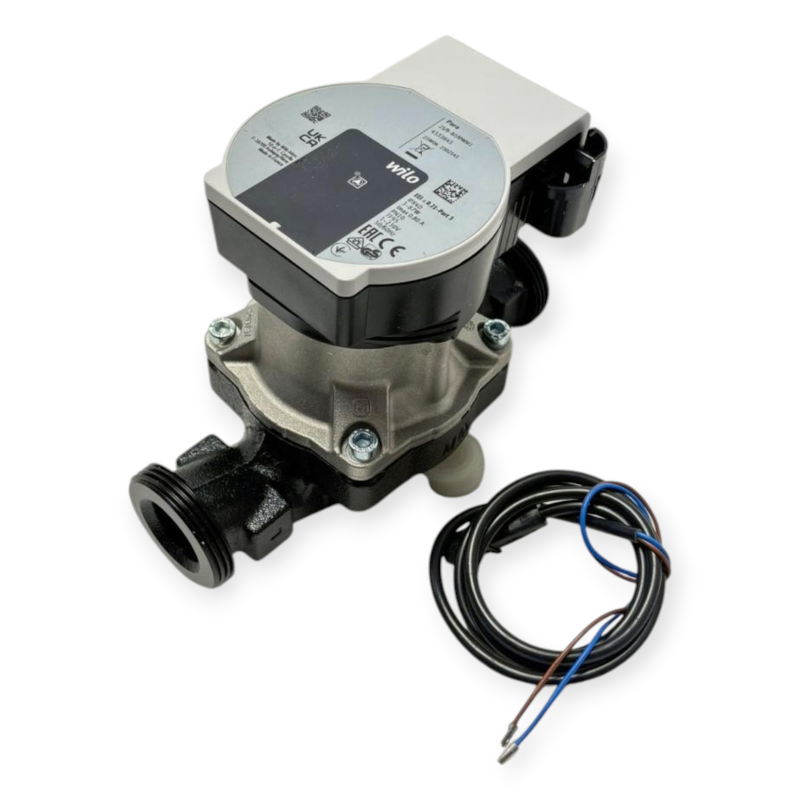

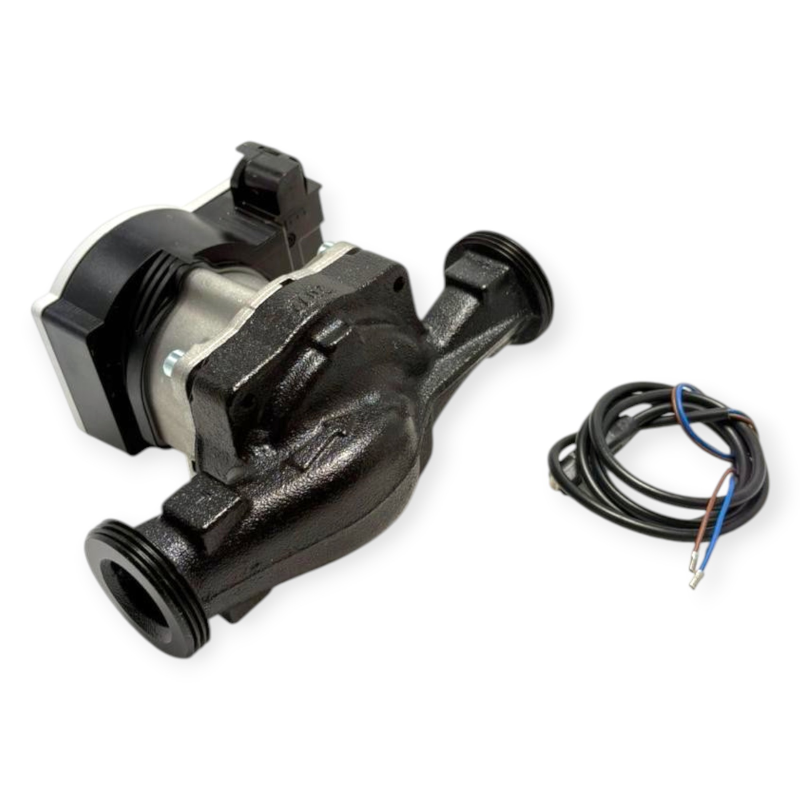

WILO PARA 25/9-87 PWM1 4533645 CIRCULATOR PUMP 230V 180MM FOR BOILER

WILO PARA 25/9-87 PWM1 4533645 ELECTRONIC CIRCULATOR REPLACEMENT FOR BOILER AND HEATING SYSTEMS.

GENERAL DESCRIPTION

ELECTRONIC CIRCULATOR USED IN HEATING SYSTEMS FOR WATER CIRCULATION IN THE THERMAL CIRCUIT.
THE COMPONENT ENSURES THE CORRECT FLOW OF THE HEAT TRANSFER FLUID AND THE OPERATION OF THE SYSTEM.
EQUIPPED WITH PWM ELECTRONIC CONTROL FOR PERFORMANCE REGULATION.

TECHNICAL FEATURES

ELECTRONIC CIRCULATOR
PWM CONTROL
COMPONENT FOR HEATING SYSTEMS
MODULATING ELECTRONIC MOTOR
USE FOR BOILER

TECHNICAL DATA

BRAND WILO
MODEL PARA 25/9-87/PWM1
CODE 4533645

POWER SUPPLY 1~230 V
FREQUENCY 50/60 HZ
POWER 3-87 W
MAX CURRENT 0.80 A
PROTECTION RATING IPX4D
NOMINAL PRESSURE PN10
CLASS TF95
CENTER DISTANCE 180 MM
MADE IN FRANCE

NOTES

ALWAYS CHECK COMPATIBILITY BY SPARE PART CODE AND BOILER MODEL.
