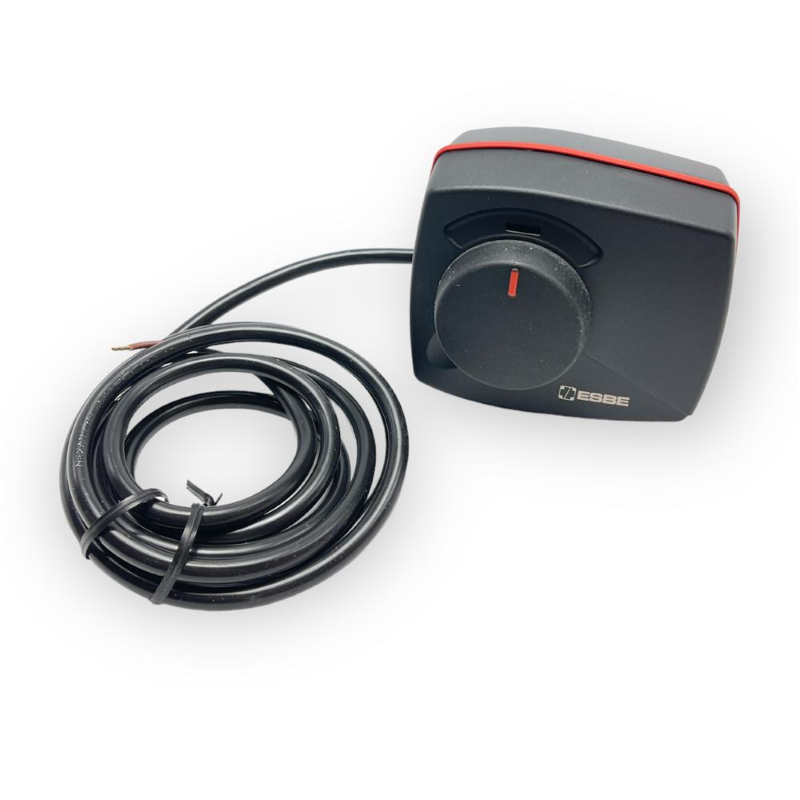

ESBE ACTUATOR ELECTRIC SERVOMOTOR 3 POINTS ARA643 12100100 24V 30 SEC
| Price: |
|
|---|---|
| Freight costs: | From € 9,39 VAT included (22%)Details |
| Item code: | 1043280 |
| Supplier code: | 12100100 |
| Condition: | New |
| Marca: | ESBE |
| Availability: | Available Shipping in 24 hours |
| Weight: | 0,500 Kg |
| Quantity: |
Services
PrintUsers feedback
Description
ARA600 SERIES 3 POINT ACTUATOR
EX ARA644 12100600
MOTORIZED VALVES WITH INTERNAL ROTOR
ESBE actuator series ARA600 for ESBE thermostatic mixing valves, DN 15–50. The actuators have an adjustment range of 90° and can be easily adjusted manually. Registered and patented design.
OPERATION: The ESBE compact actuator series ARA600 is designed for internal rotor mixers DN 15-50. The ARA6X1, ARA6X2, ARA6X3 and ARA6X4 actuators are controlled by a 3-point signal and recommended for mixing applications. The actuator has an adjustment range of 90° and the valve can be operated easily manually by means of the button on the front side of the actuator.
VERSIONS: ESBE actuators with 3-point control signal are available for 24 or 230 V AC, 50 Hz, and are supplied with a 1.5 m connection cable. Furthermore, they are available with a wide range of rotation times from 30 to 1200 seconds. An auxiliary switch, which can be set in any position, is available as a pre-assembled component on the actuator (ARA6X2 and ARA6X4) or as an optional kit to be ordered separately. The auxiliary switch is easily set thanks to a unique solution. To access the switch, simply lift the button, without tools or disassembling any component.
SUITABLE THERMOSTATIC VALVES: Due to the special interface between the ARA600 series actuator and ESBE valves series VRG, VRB and VRH, the complete unit offers outstanding stability and control precision.

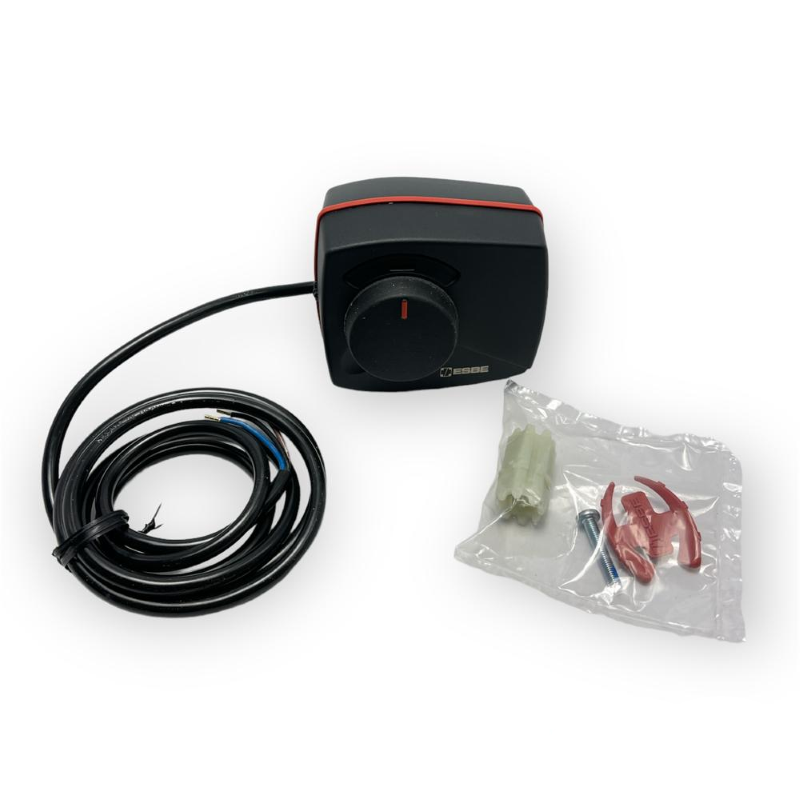

FITTING SET: The actuator is supplied with an adapter kit for easy mounting on an ESBE rotary mixer series VRG, VRB and VRH. Adapter kits can also be ordered separately.
